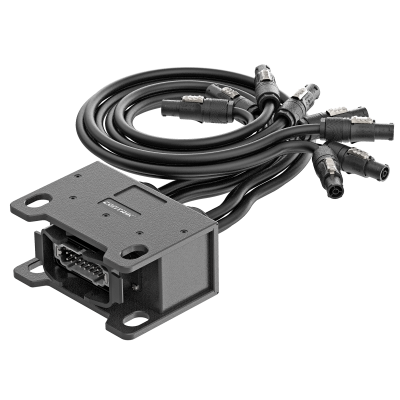

CKPE-AHA1 2

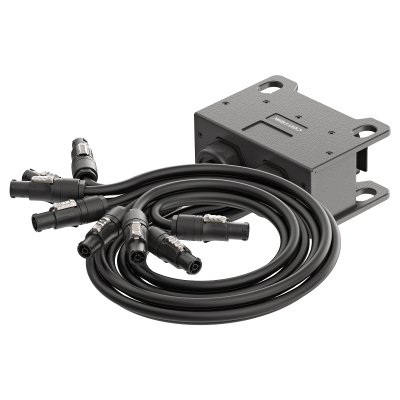

CKPE-AHA1 1
CKPE-AHA1 2
CKPE-AHA1 1

Power multicore split cables CKPE50/55-AHA1-Mx

Split cable assemblies 1 x Harting E16 compatible connector (m) - 6 / 8 x powerCONTRUE1 (f)

The Power Multicore Split Cable offers a practical solution for multicore power distribution, simplifying the separation of the CONTRIK 1x multicore line with Harting E16 connectors (CKPH50/55-AHAH-*) into 6 or 8 individual single-phase powerCON TRUE1 lines. In response to customer requests, CONTRIK is proud to introduce the Power Multicore Split Cable Harting.

These cables are especially well-suited for outdoor use and robust mobile applications, providing a reliable and efficient power distribution solution.

Download Data Sheet

Features & Benefits

  • Affordable and practical solution for splitting a multicore line into individual powerCON TRUE1 TOP lines
  • High outdoor protection (IP65 when mated)
  • Premium quality rubber cables (TITANEX)
  • Multicore cable with 6 or 8 channels

Downloads

Market & Application

  • Markets: Professional video wall, lighting, audio
  • Mobile application: Festivals, live events
  • Semi-permanent applications: Theaters, studios



Ordering information

Product titleDetails                                                                                                                                                              Lentgth in mOrder code
CKPE50-AHA1-M0100_PGM6 x channels,
2 x PG glands with multiple outputs		11038679
CKPE55-AHA1-M0100_PGM8 x channels,
2 x PG glands with multiple outputs		11038681
CKPE50-AHA1-M0100_PGE(on request modification)
6 x channels,
6 x PG glands with single outputs		11038680
CKPE55-AHA1-M0100_PGE(on request modification)
8 x channels,
8 x PG glands with single outputs		11039030



Technical Information

Product
Title CKPE50 / 55-AHA1*
Gender Male (Socapex compatible) – Female (powerCON TRUE1)
Connector type -1x Harting E16 connector
-6 / 8 x powerCON TRUE1 TOP (NAC3FX-W TOP*), 6 or 8 channels
Cable type -12x black 2,5mm² & 1x green-yellow 4mm² (6 channels)
-16x black 2,5mm² & 1x green-yellow 4mm² (8 channels)
Split cable type H07RN-F 3x2,5mm² TITANEX
Mechanical
Lifetime > 500 mating cycles
Locking device -Harting E16: locking lever mechanism
-powerCON TRUE1 TOP: powerCON twist locking
Conductor cross section 2.5 mm²
Weight
Environmental
Standards compatibility DIN 15765
Protection class IP65 in mated condition
Temperature range -5 °C to +70 °C
